Headlights Installation Guide, How to, Toyota Tacoma (2005-2011)

How to Disable 3 LED Strips For 05-11 Toyota Tacoma Headlights

Table of Contents

Disclaimer: This installation article is a tutorial guide. By reading this article, you agree it is for reference only and AlphaRex USA and its distributors make no guarantee on the finished results. Under no circumstances whatsoever shall AlphaRex USA nor its distributors be liable for any damage, misuse or personal injuries. If you do not fully understand the installation procedure, it is highly recommended that you seek help from professional mechanics to do the installation.

INSTALLATION TOOLS

Phillips Screwdriver

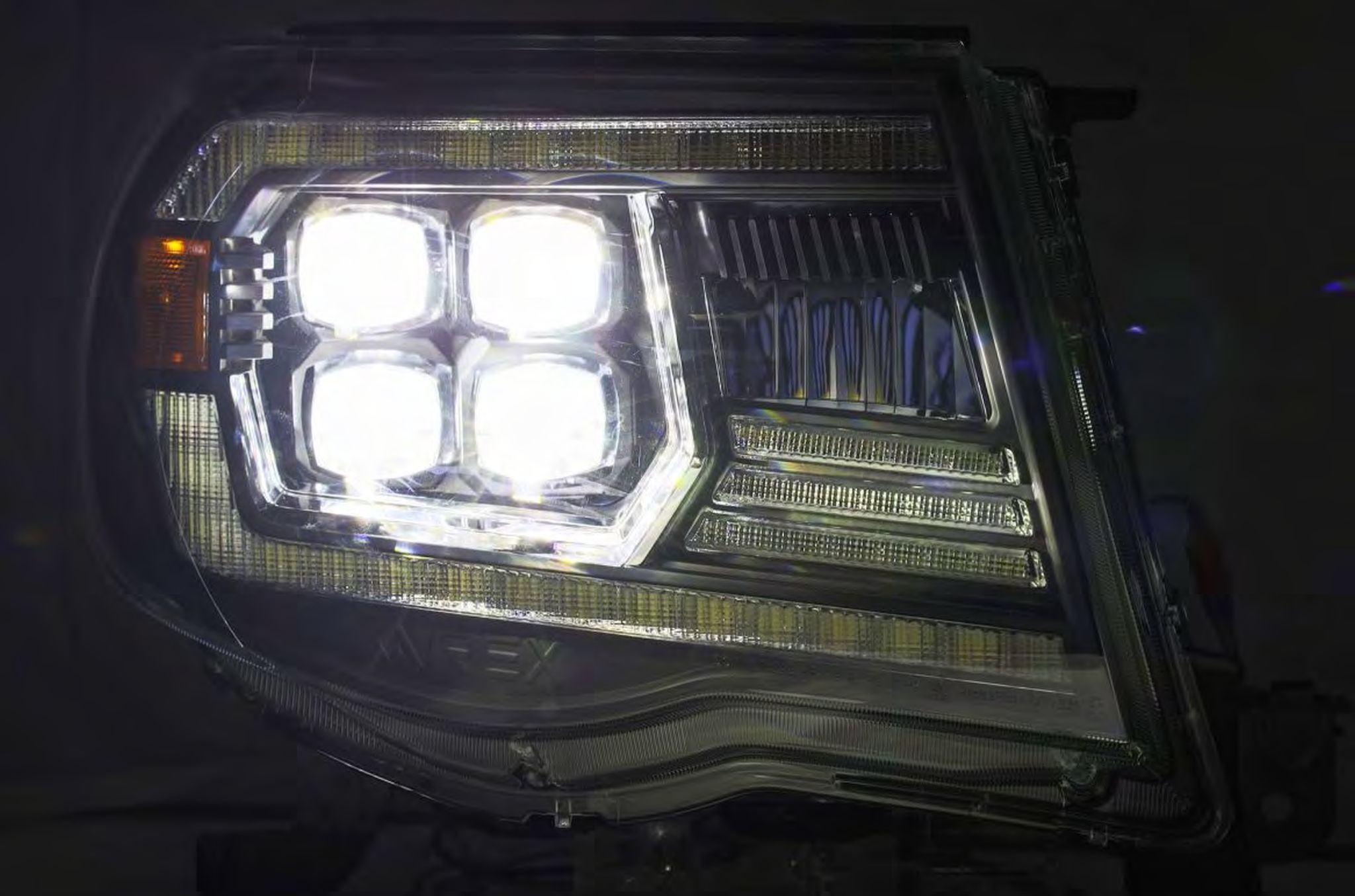

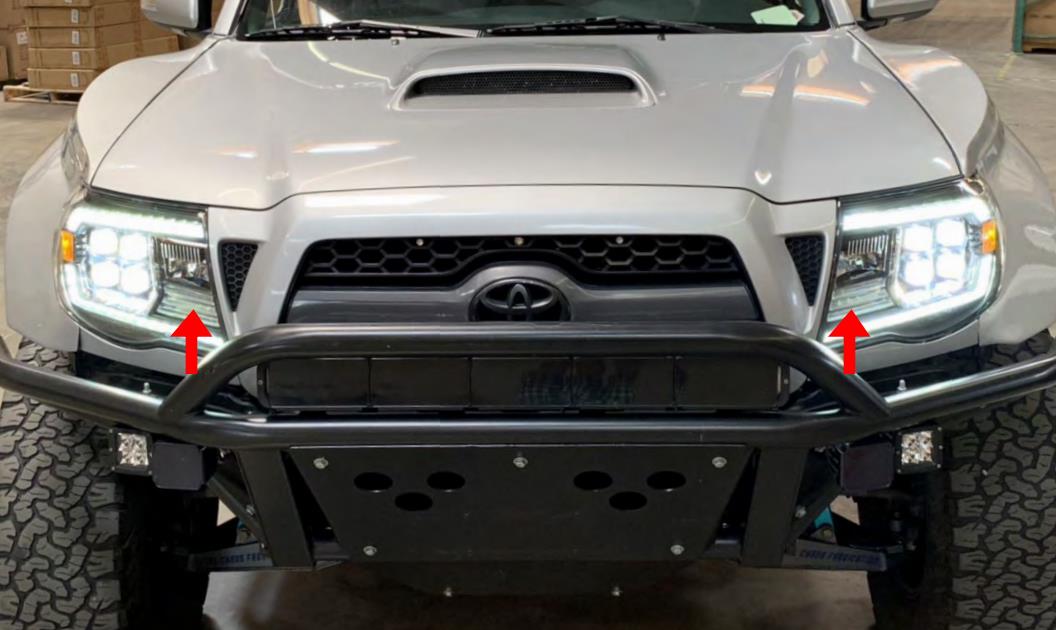

The ALPHAREX PRO-Series, LUXX-Series, and NOVA-Series headlights designed for the 2005-11 Toyota Tacoma come equipped with 3 LED strips on the headlights by default. Customers have the option to enable or disable these 3 LED strips according to their preference.

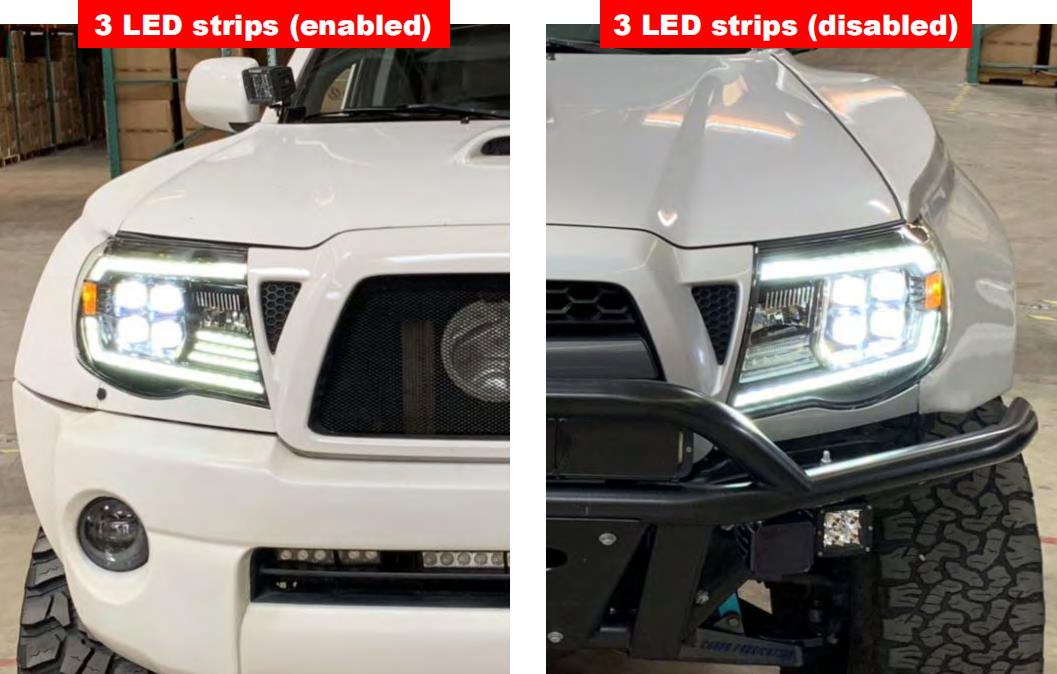

For customers who wish to retain the 3 LED strips, no action is required.
For customers who do not want the 3 LED strips, please follow the steps below.

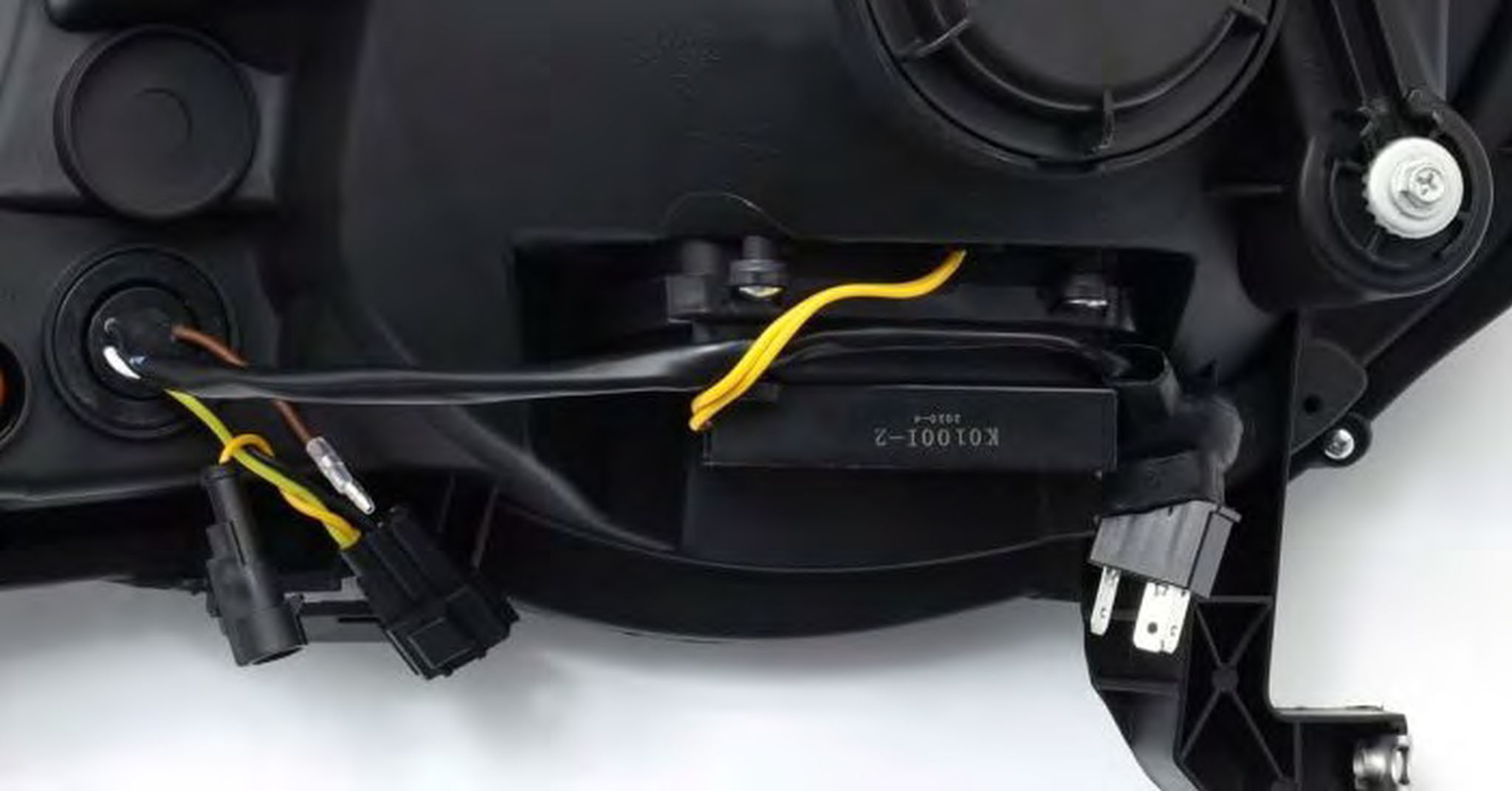

OPEN THE HEADLIGHT’S CIRCUIT BOARD

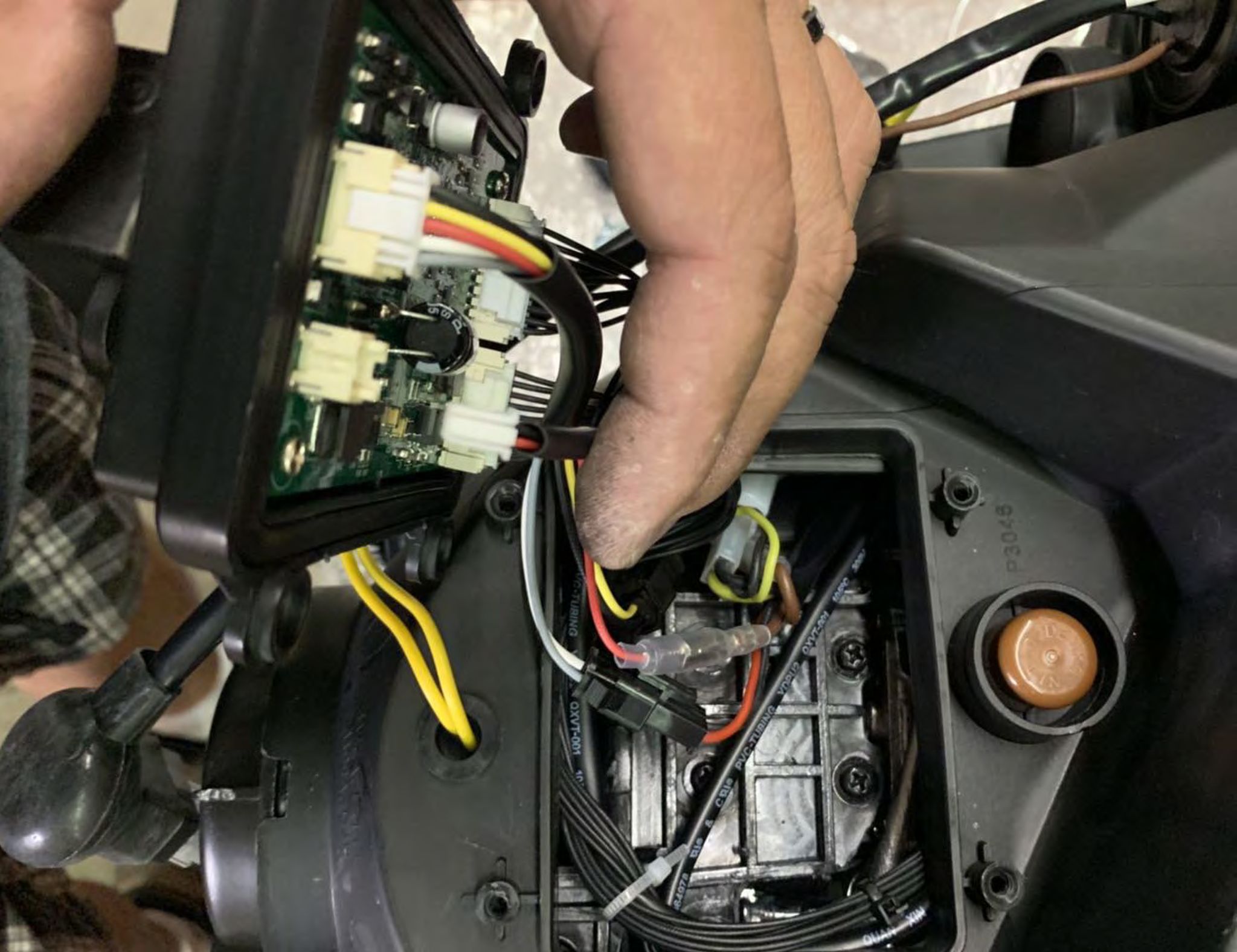

Unscrew the three Phillips screws located on the bottom of the headlight.

UNPLUG 2 PIN CONNECTOR

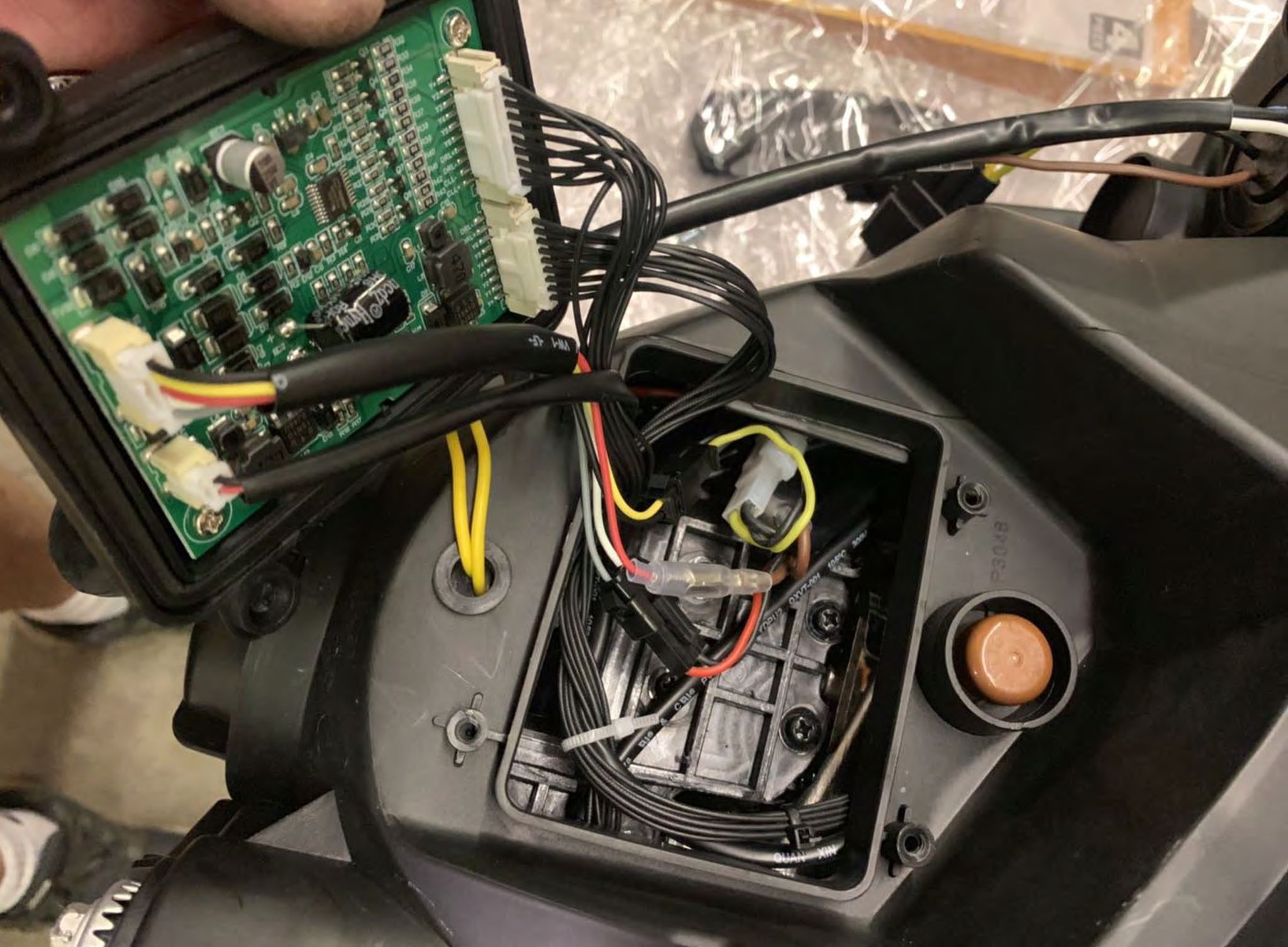

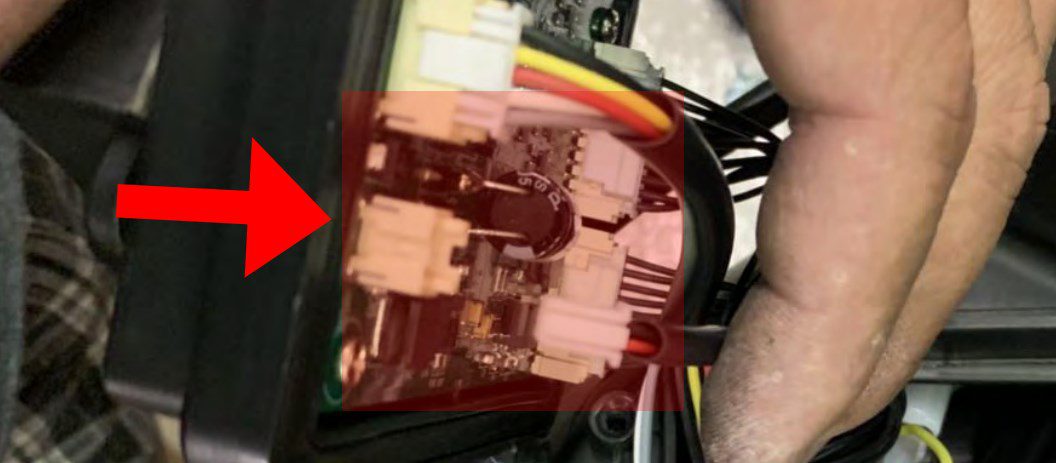

Once the circuit board is exposed, unplug the 2-pin connector (RED and BLACK wires) and leave it unplugged.

COMPLETE STEPS TO DISABLE 3 LED STRIPS

Reinstall the circuit board onto the headlight by securing it with the 4 Phillips screws.
Repeat these steps for the other side of the headlight.

End of installation guide

If you have any questions about installation, please reach out to our technical support team for assistance.
