General Guide, How to, Tail Lights Installation Guide

How to Disable Sequential Turn Signal to use Blinking Turn Signal for LUXX-Series LED Tail Lights

Table of Contents

Disclaimer: This installation article is a tutorial guide. By reading this article, you agree it is for reference only and AlphaRex USA and its distributors make no guarantee on the finished results. Under no circumstances whatsoever shall AlphaRex USA nor its distributors be liable for any damage, misuse or personal injuries. If you do not fully understand the installation procedure, it is highly recommended that you seek help from professional mechanics to do the installation.

From the above list, the LUXX-Series Tail lights come with optional plugs for disabling the LED Sequential Turn signal (NON SEQUENTIAL). By default from the factory the switch plugs are unplugged.

CUSTOMERS CAN CHOOSE TO DISSABLE THE SEQUENTIAL TURN SIGNAL BASED ON THEIR PREFERENCE. PLEASE NOTE: once you PLUGGED the switch, your turn signal will ONLY BLINK and NON SEQUENTIAL.

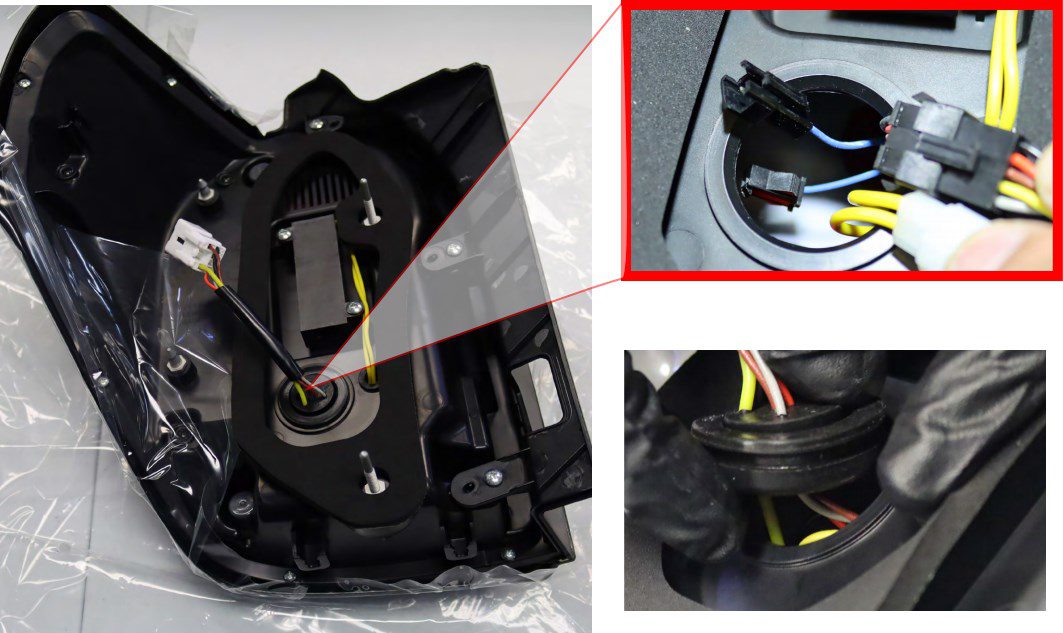

NON SEQUENTIAL PLUGS LOCATION

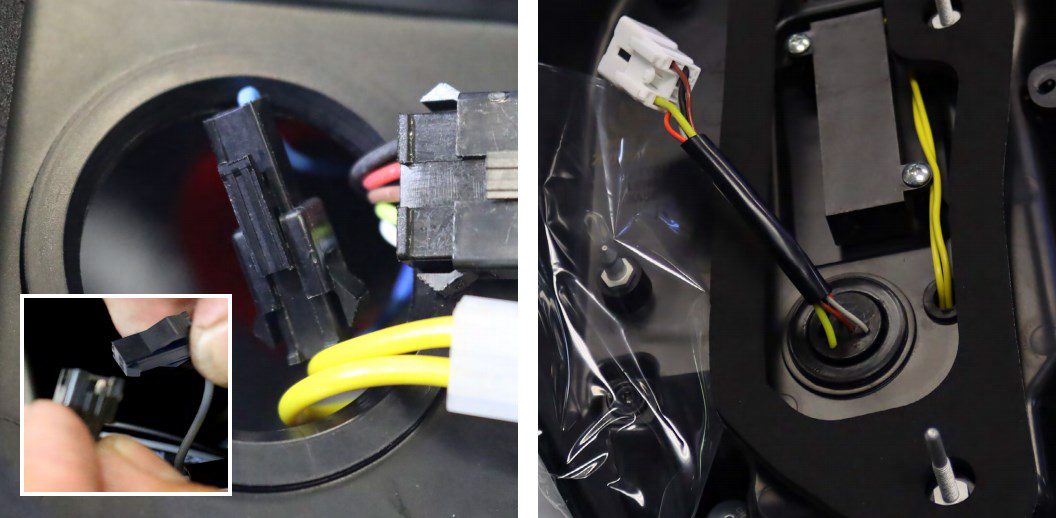

From back of each ALPHAREX tail lights, you will find plug connectors for non sequential lighting.

Please locate the plug connectors by opening up the seal cap.

CONNECT THE PLUGS

Connect the plugs for each of the tail lights and close the opening with the seal.

COMPLETE NON SEQUENTIAL TURN SIGNAL LIGHTS

Congratulations! You have disabled the Sequential Turn Signal lights (NON SEQUENTIAL).

End of installation guide

If you have any questions about installation, please reach out to our technical support team for assistance.
