INSTALLATION TOOLS
Phillips Screwdriver
How to: Switch DRL from white to amber on 05-07 Ford Super Duty

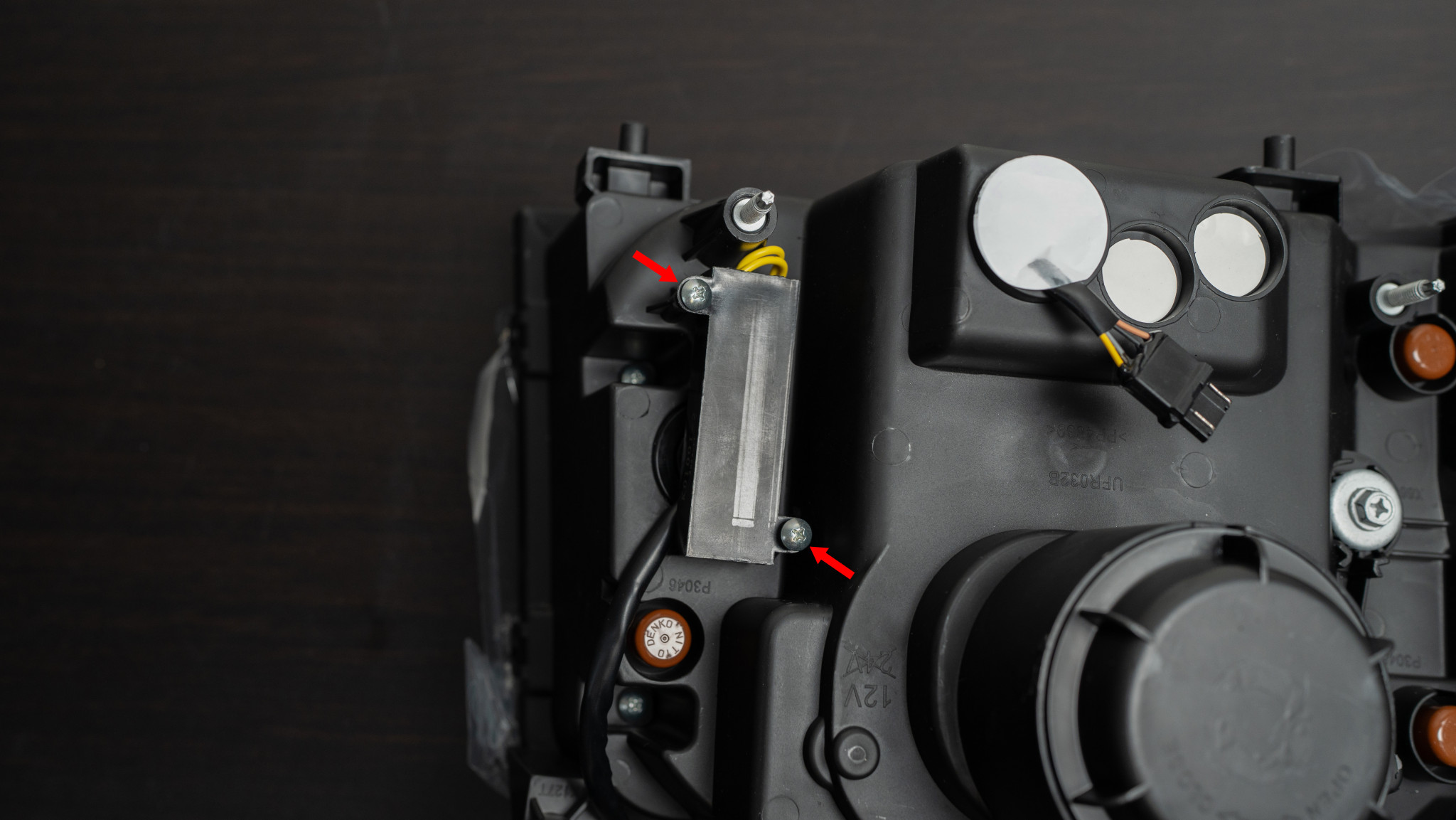

The first thing you want to do is to flip your light on its back and locate the Resistor.

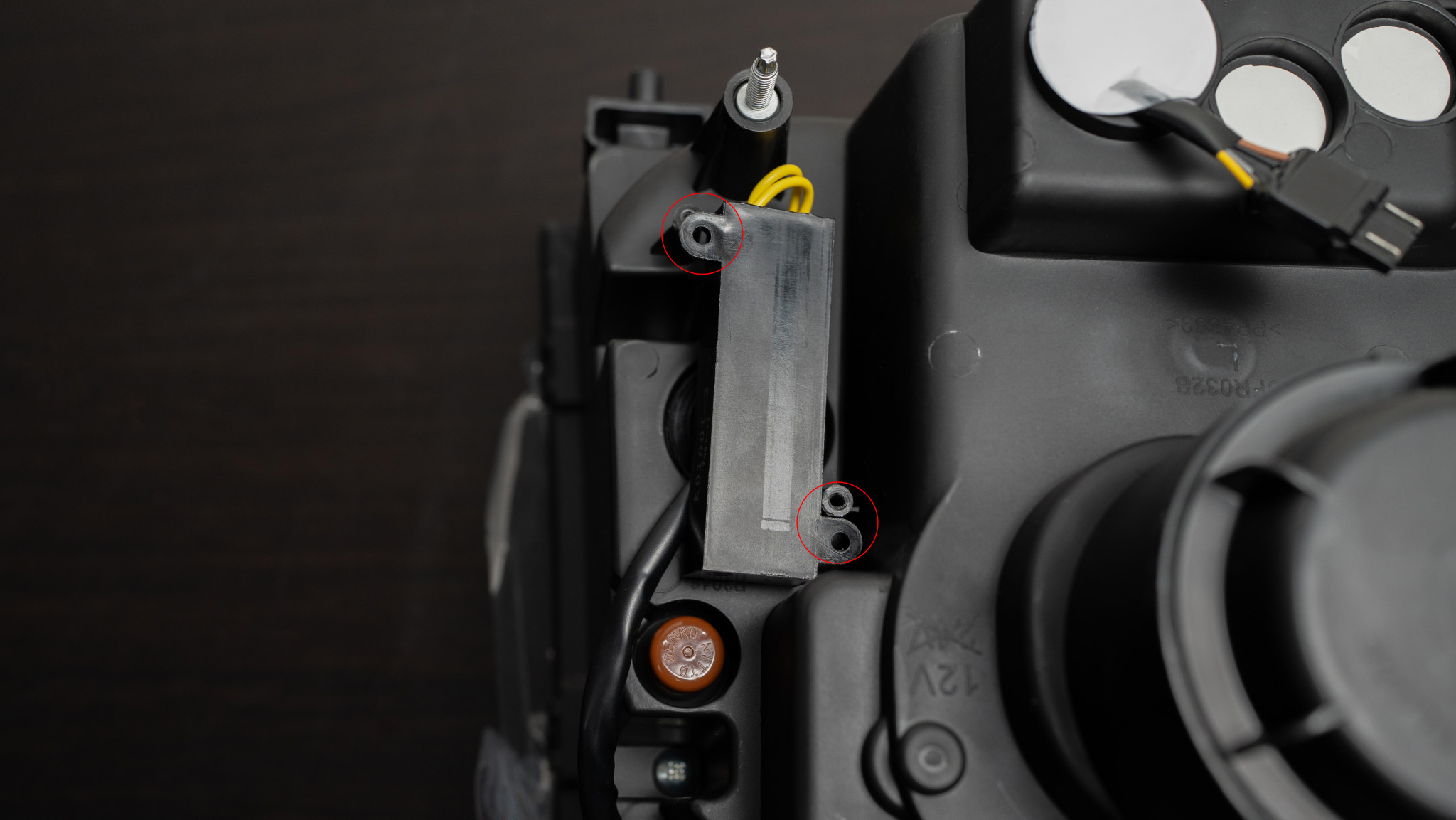

Once found you will need to remove the two phillips head screws.

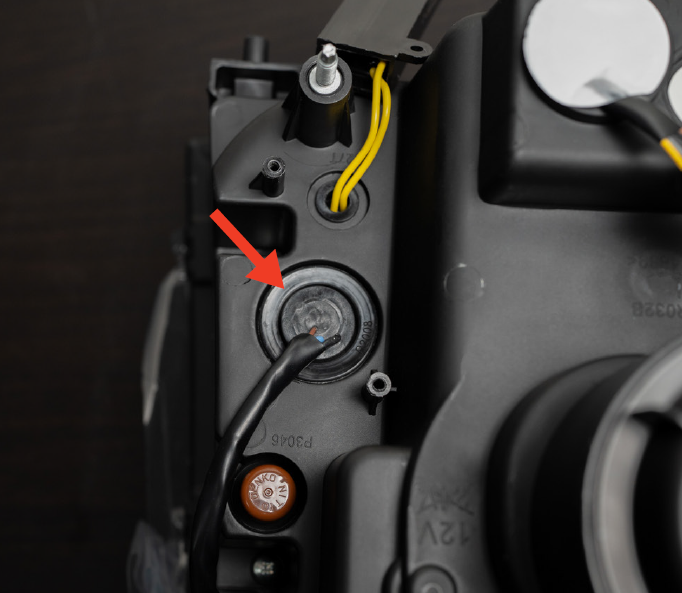

Once removed, you’ll have access to the grommet below. Pull it back to reach the internal components of the light.

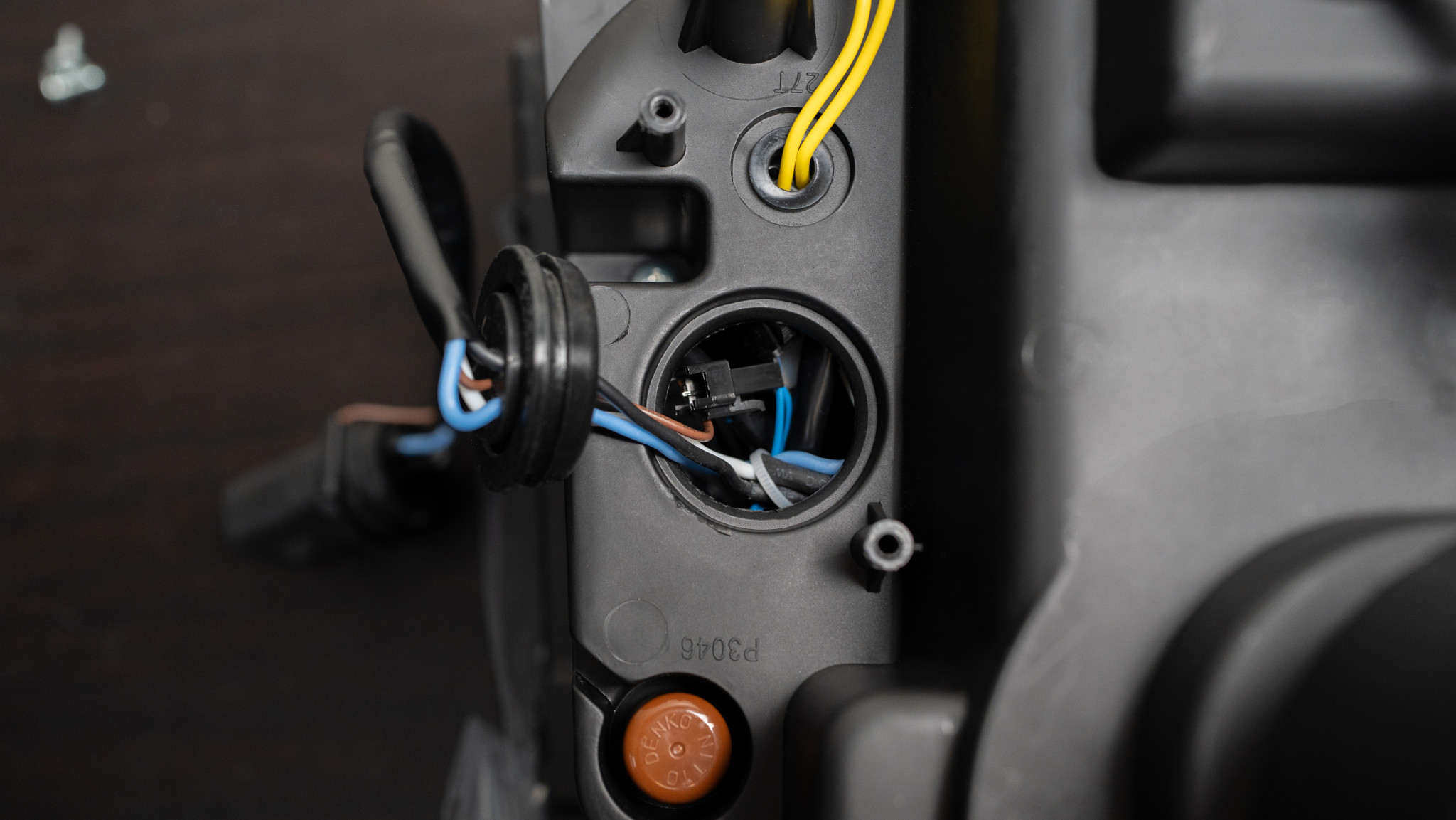

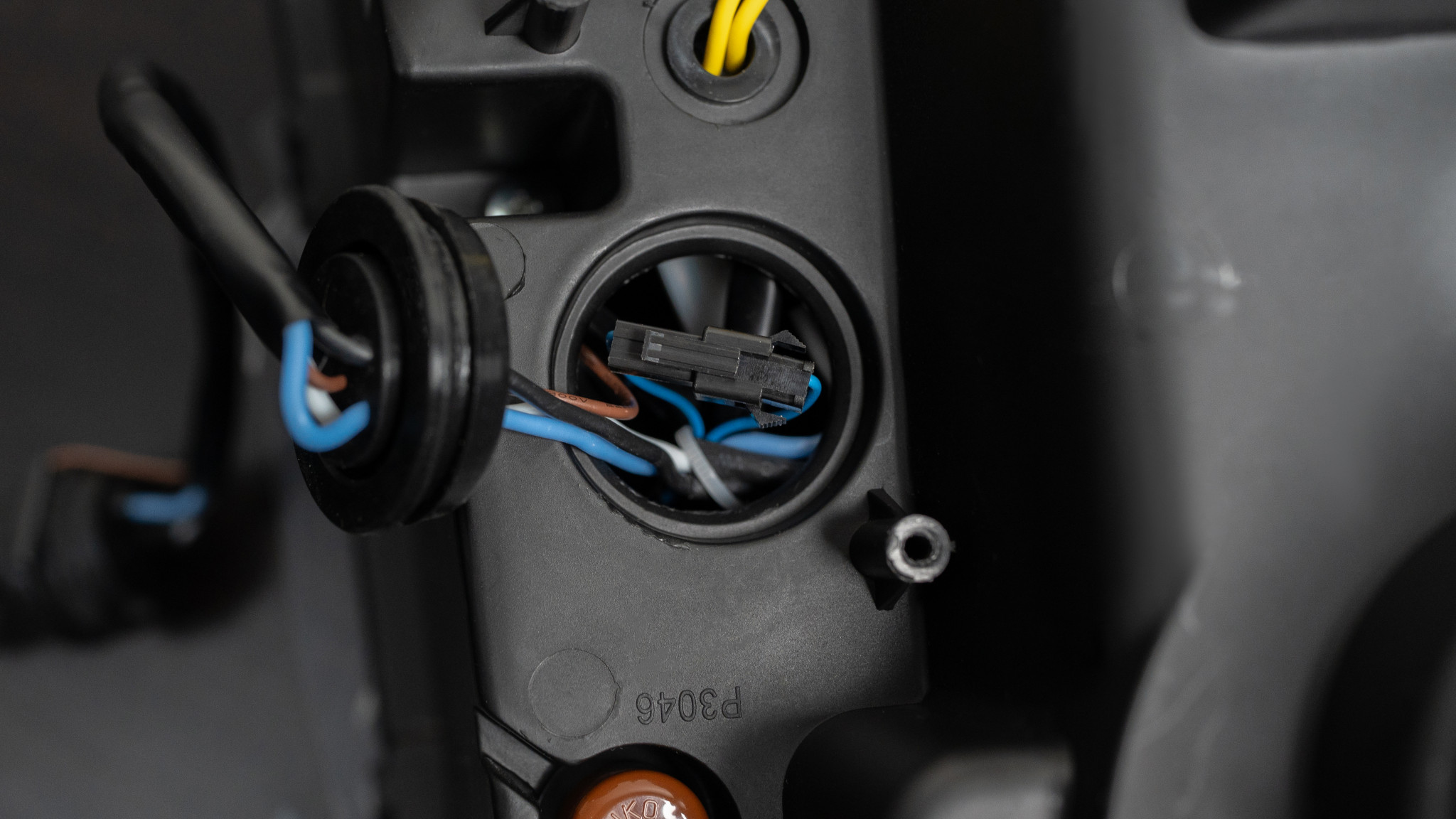

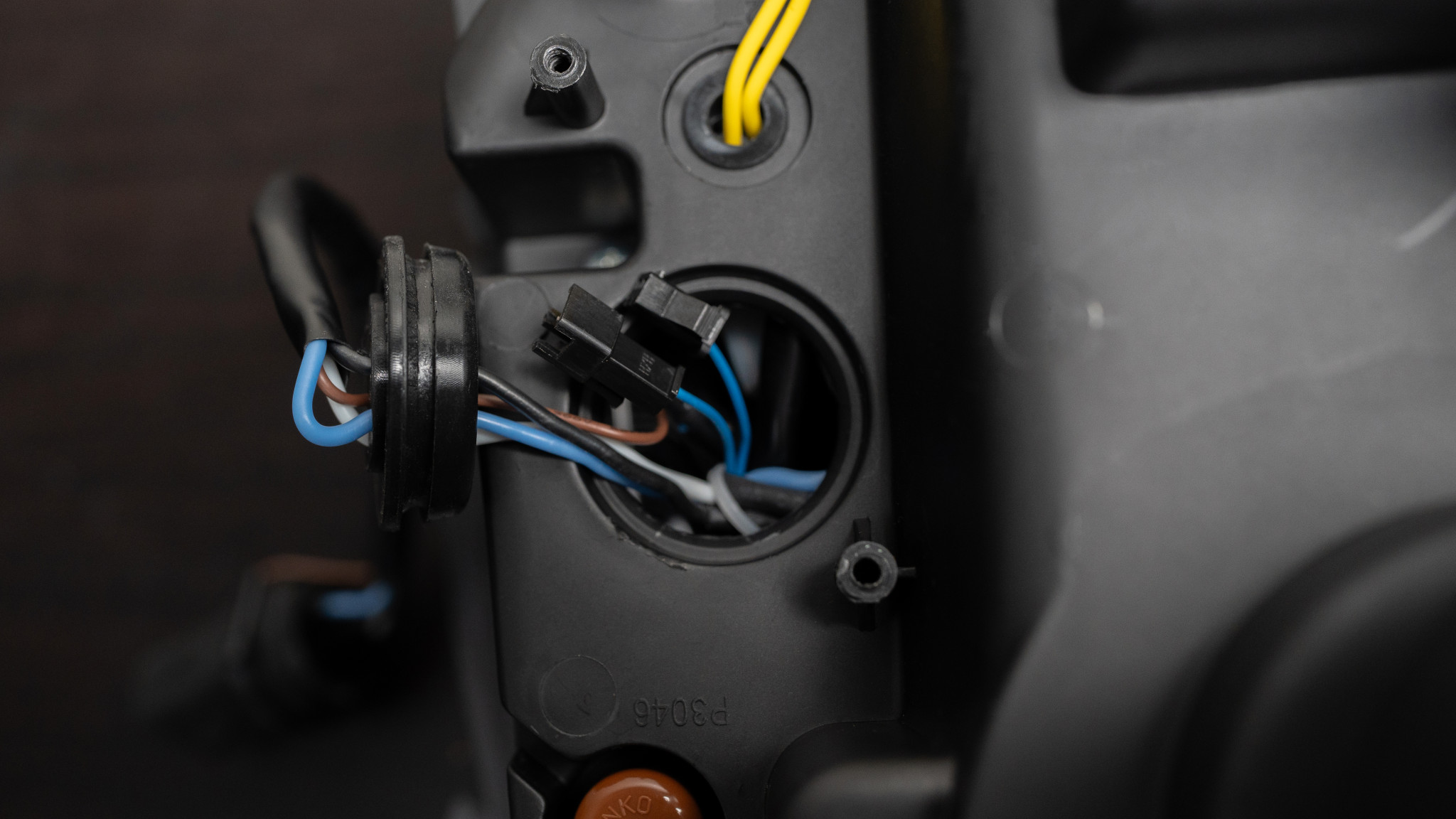

Once opened, locate the two single blue wires with black plugs at
the ends. Connect them together to switch the DRL to amber.

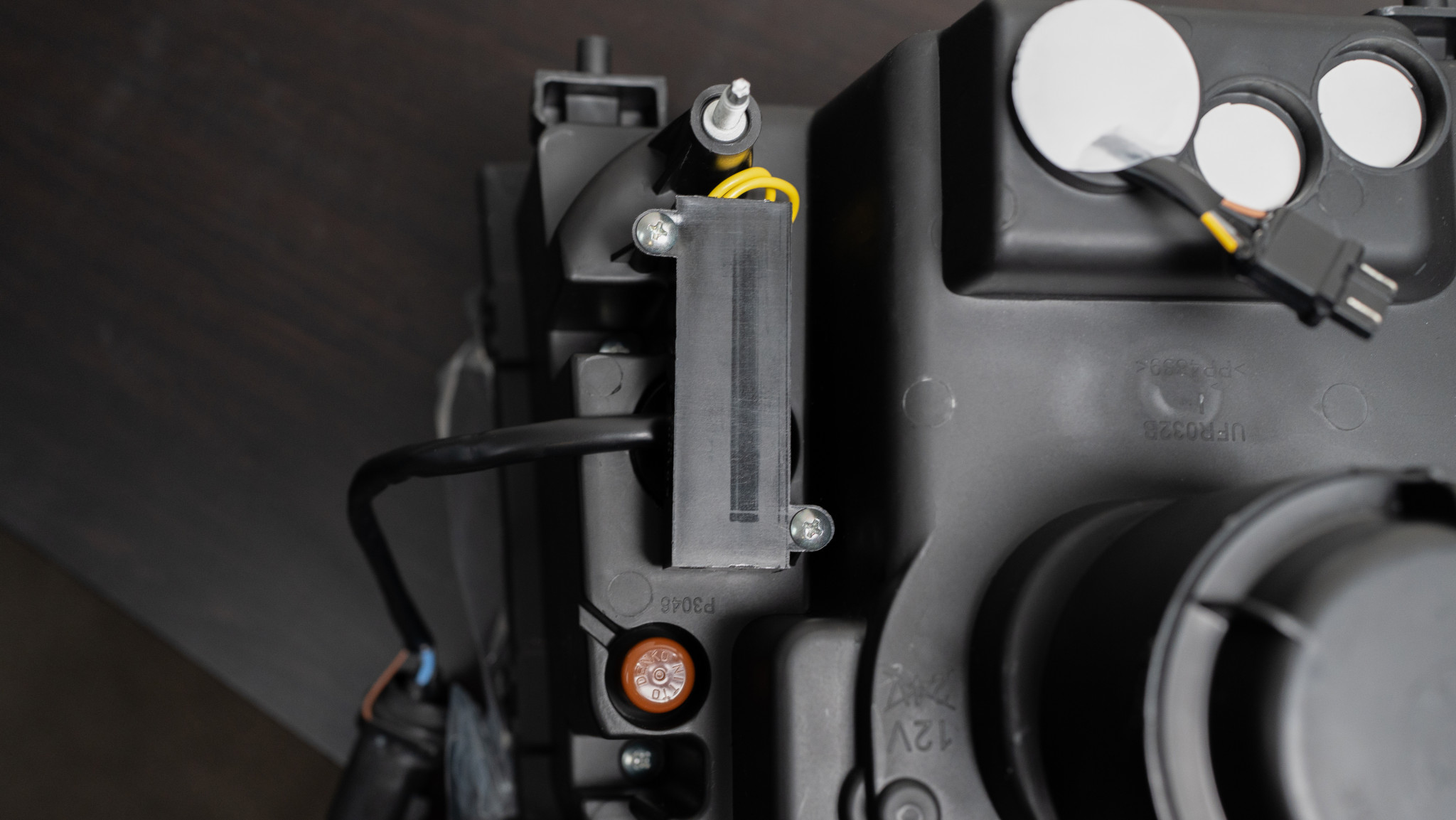

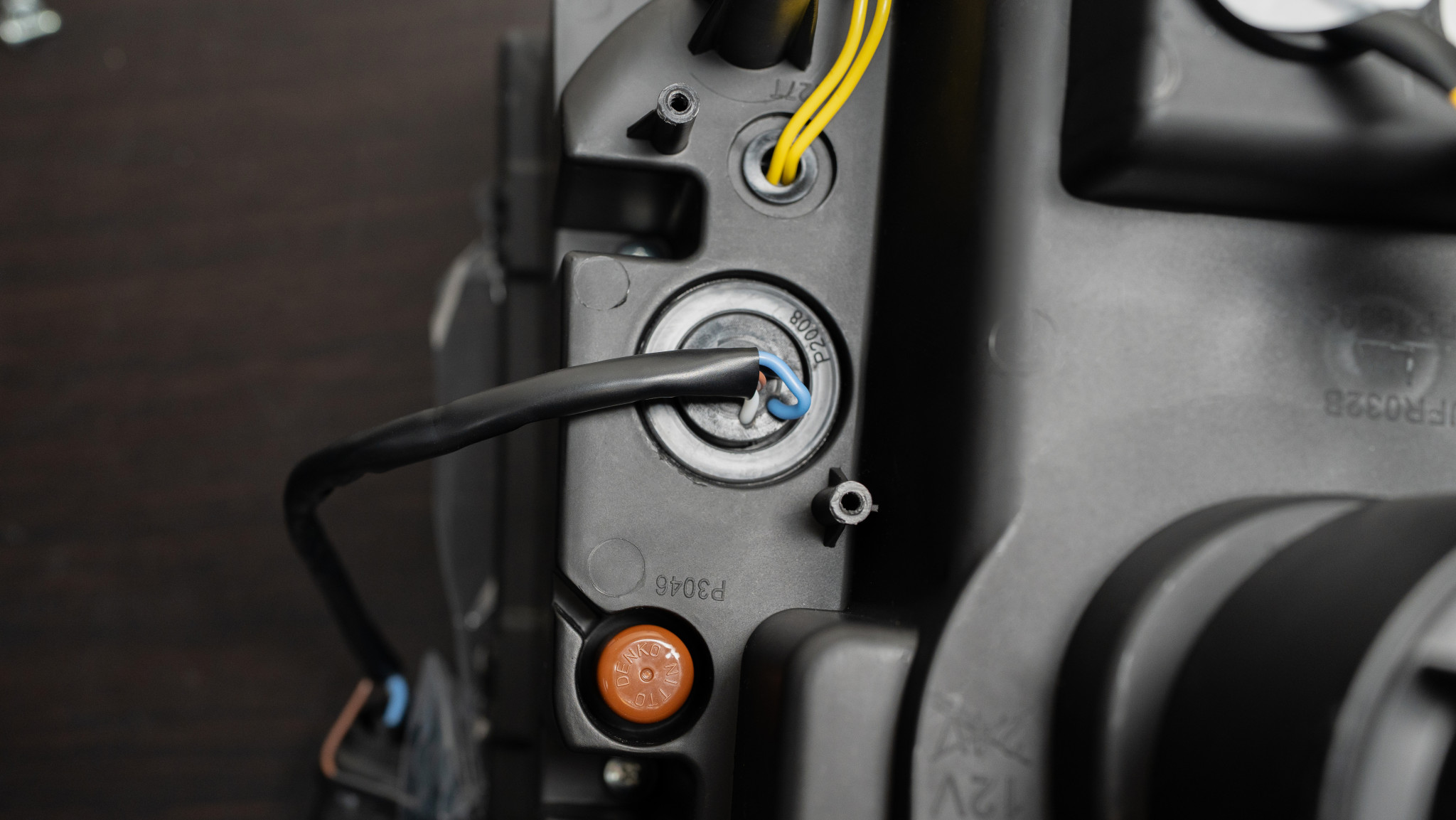

Once connected, the process is complete—just reassemble everything back to its original position.
End of installation guide
If you have any questions about installation, please reach out to our technical support team for assistance.
