How to Switch to Amber Daytime Running Light (DRL) for AlphaRex 11-16 Ford Super Duty Headlights

Posted by

On December 11, 2023

Comments Off

Disclaimer: This installation article is a tutorial guide. By reading this article, you agree it is for reference only and AlphaRex USA and its distributors make no guarantee on the finished results. Under no circumstances whatsoever shall AlphaRex USA nor its distributors be liable for any damage, misuse or personal injuries. If you do not fully understand the installation procedure, it is highly recommended that you seek help from professional mechanics to do the installation.

This instruction guide is applicable to the following ALPHAREX headlight products:
11-16 Ford Super Duty NOVA-Series LED Projector Headlights (Alpha-Black) / SKU: 880147
11-16 Ford Super Duty NOVA-Series LED Projector Headlights (Chrome) / SKU: 880148
11-16 Ford Super Duty NOVA-Series LED Projector Headlights (Black) / SKU: 880149
11-16 Ford Super Duty LUXX-Series LED Projector Headlights (Alpha-Black) / SKU: 880143
11-16 Ford Super Duty LUXX-Series LED Projector Headlights (Chrome) / SKU: 880145
11-16 Ford Super Duty LUXX-Series LED Projector Headlights (Black) / SKU: 880146

In the product list, the LUXX-Series and the NOVA-Series headlights designed for the 2011-16 Ford Super Duty offer an optional switch plug, allowing you to customize the color of the Daytime Running Lights (DRL) and Parking lights to Amber (Yellow). By default, these lights come in White from the factory.

Customers have the flexibility to choose Amber (Yellow color) based on their preference. PLEASE NOTE: Once you have plugged in and switched to Amber, the color of the Daytime Running Lights (DRL) and Parking lights will remain in Amber (Yellow color).

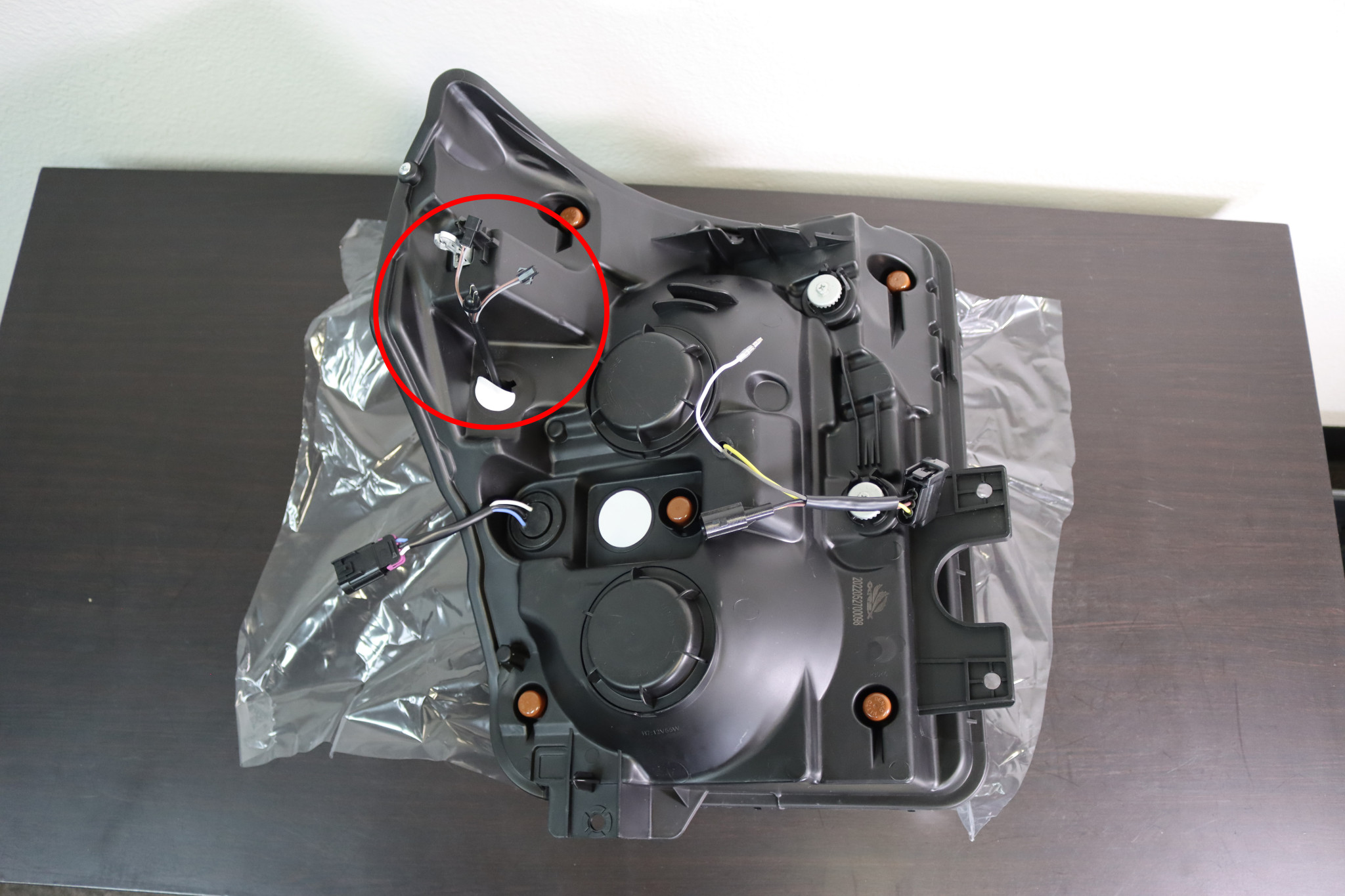

AMBER SWITCH PLUG LOCATION

The amber switch plug is located at the back of each headlight assembly, next to the parking light connection.

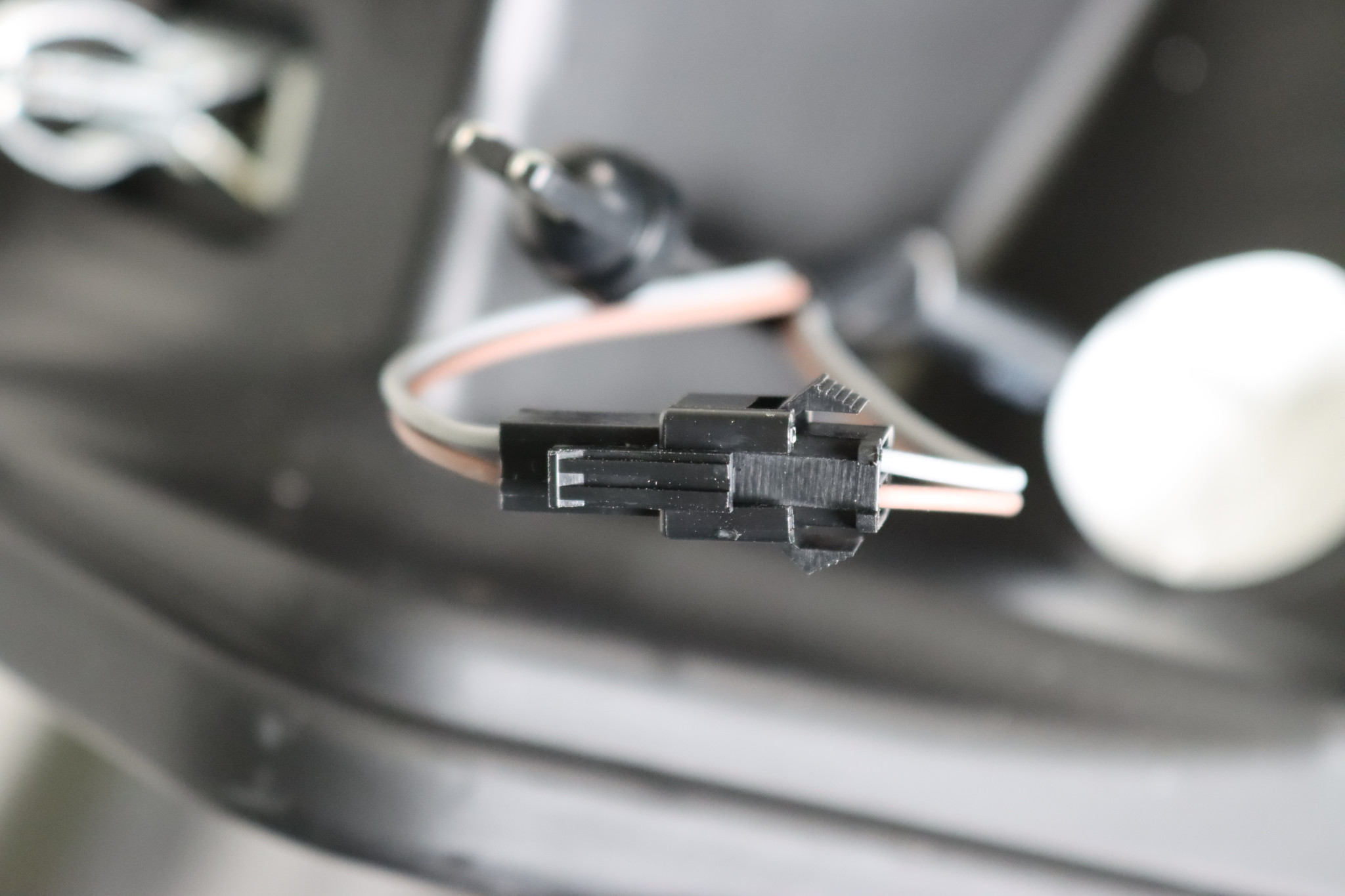

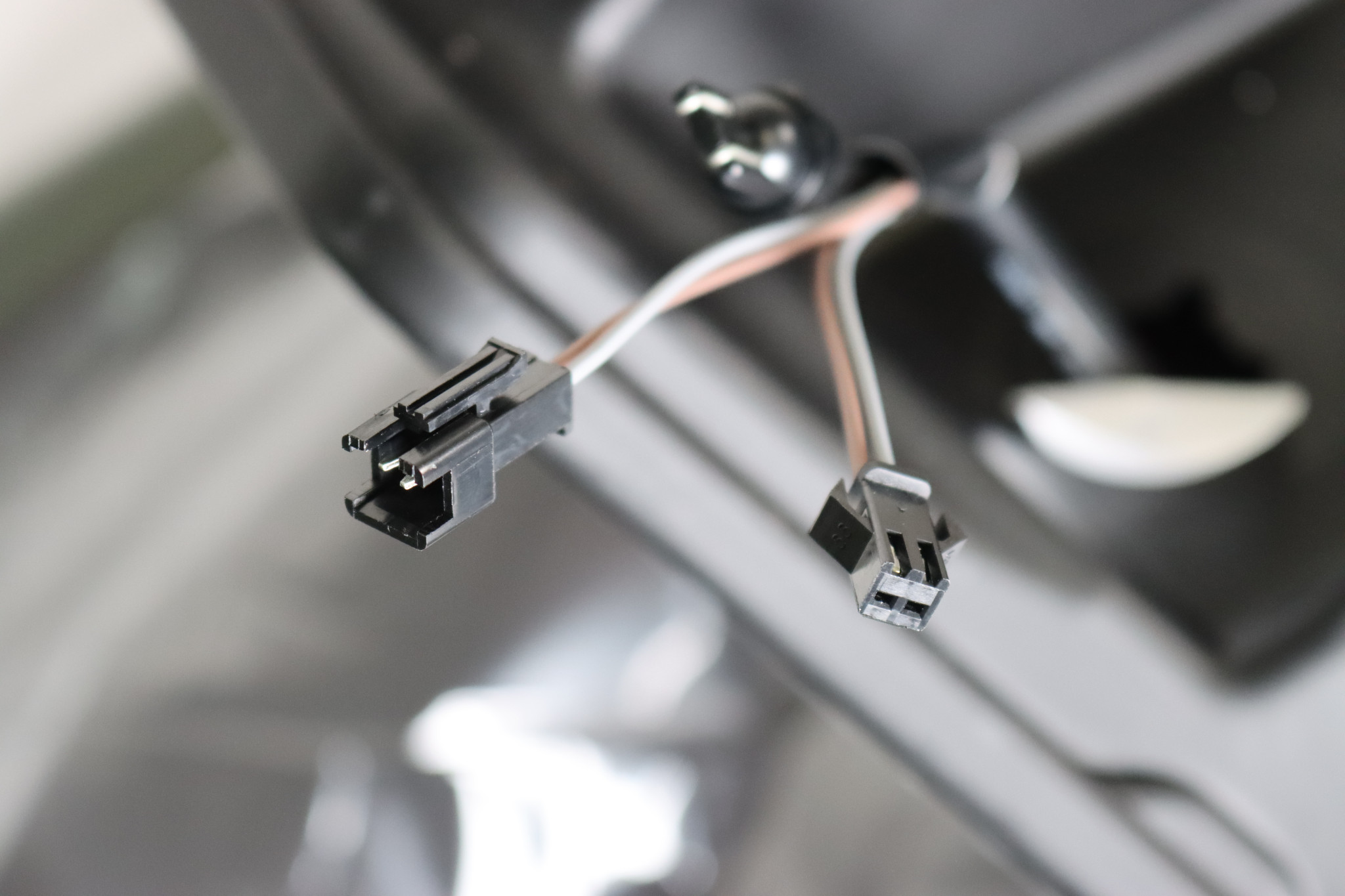

CONNECT THE AMBER SWITCH PLUGS

Connect the amber DRL plugs directly into each of the headlights.
DO NOT USE DIELECTRIC GREASE!

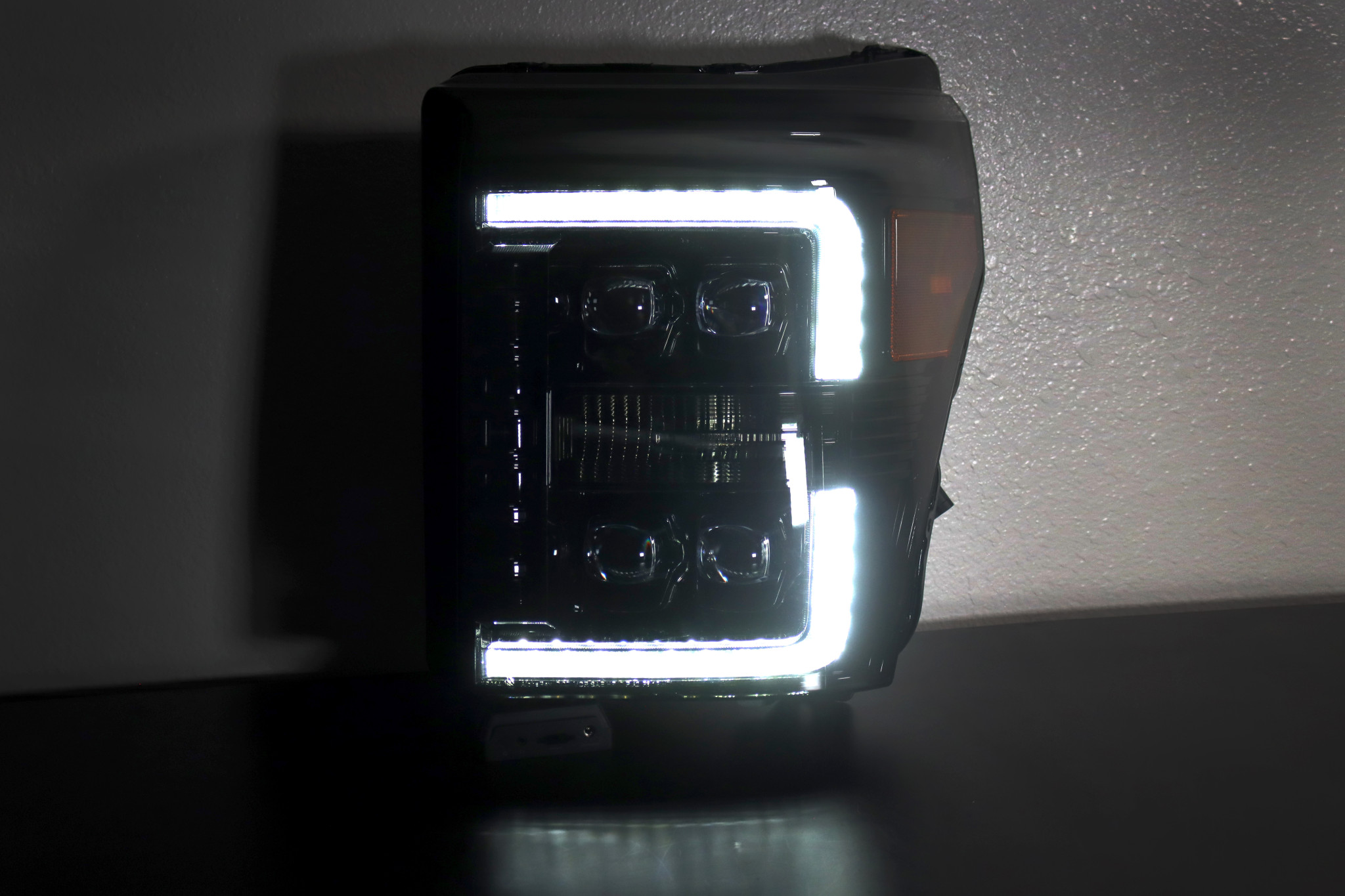

COMPLETE THE SWITCH TO AMBER DRL & PARKING LIGHTS

After plugging in the connection, reinstall the headlights onto the vehicle. Congratulations! You have successfully switched to Amber (Yellow color) Daytime Running Lights (DRL) and Parking lights.
