How to Switch to Amber Daytime Running Light (DRL) for AlphaRex 07-21 Toyota Tundra / 08-17 Sequoia Headlights

Table of Contents

Disclaimer: This installation article is a tutorial guide. By reading this article, you agree it is for reference only and AlphaRex USA and its distributors make no guarantee on the finished results. Under no circumstances whatsoever shall AlphaRex USA nor its distributors be liable for any damage, misuse or personal injuries. If you do not fully understand the installation procedure, it is highly recommended that you seek help from professional mechanics to do the installation.

This instruction guide is applicable to the following ALPHAREX headlight products:
07-13 Toyota Tundra | 08-17 Toyota Sequoia MK II LUXX-Series LED Projector Headlights with Level Adjuster (Alpha-Black) – SKU: 880825
07-13 Toyota Tundra | 08-17 Toyota Sequoia MK II LUXX-Series LED Projector Headlights with Level Adjuster (Black) – SKU: 880823
07-13 Toyota Tundra | 08-17 Toyota Sequoia MK II LUXX-Series LED Projector Headlights with Level Adjuster (Chrome) – SKU: 880824
07-13 Toyota Tundra | 08-17 Toyota Sequoia MK II NOVA-Series LED Projector Headlights with Level Adjuster (Alpha-Black) – SKU: 880820
07-13 Toyota Tundra | 08-17 Toyota Sequoia MK II NOVA-Series LED Projector Headlights with Level Adjuster (Black) – SKU: 880818
07-13 Toyota Tundra | 08-17 Toyota Sequoia MK II NOVA-Series LED Projector Headlights with Level Adjuster (Chrome) – SKU: 880819
14-21 Toyota Tundra MK II LUXX-Series LED Projector Headlights (Alpha-Black) – SKU: 880836
14-21 Toyota Tundra MK II LUXX-Series LED Projector Headlights (Black) – SKU: 880835
14-21 Toyota Tundra MK II NOVA-Series LED Projector Headlights (Alpha-Black) – SKU: 880832
14-21 Toyota Tundra MK II NOVA-Series LED Projector Headlights (Black) – SKU: 880833
14-21 Toyota Tundra MK II NOVA-Series LED Projector Headlights (Chrome) – SKU: 880831

In the product list, the LUXX-Series and the NOVA-Series headlights designed for the 2007-21 Toyota Tundra | 2008-17 Toyota Sequoia offer an optional switch plug, allowing you to customize the color of the Daytime Running Lights (DRL) and Parking lights to Amber (Yellow). By default, these lights come in White from the factory.



Customers have the flexibility to choose Amber (Yellow color) based on their preference. PLEASE NOTE: Once you have plugged in and switched to Amber, the color of the Daytime Running Lights (DRL) and Parking lights will remain in Amber (Yellow color).

AMBER SWITCH PLUGS LOCATION

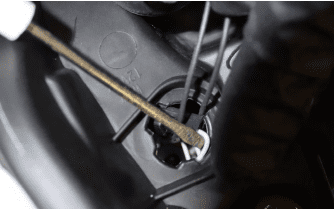

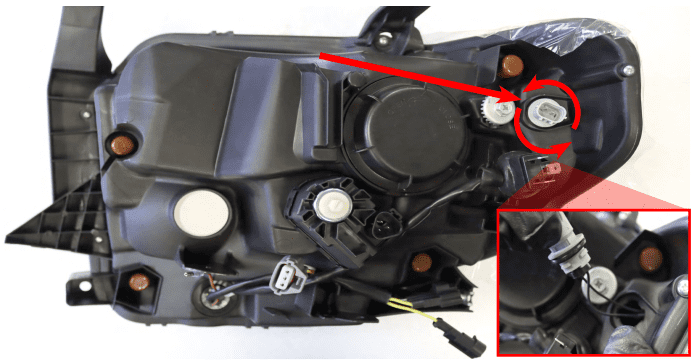

Rotate to disengage the side marker socket from the back of each ALPHAREX headlight

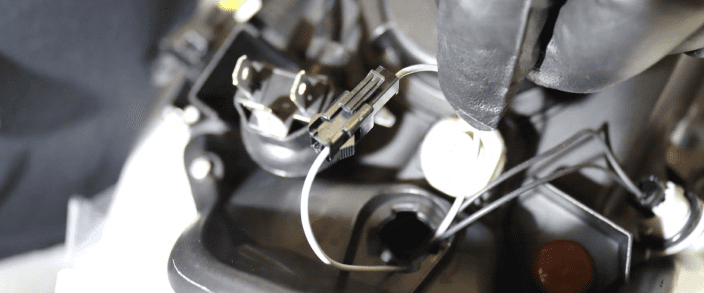

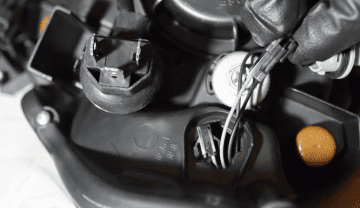

Inside the headlight, you’ll discover plug connectors intended for switching to Amber (Yellow color) DRL & Parking lights.

CONNECT THE AMBER SWITCH PLUGS

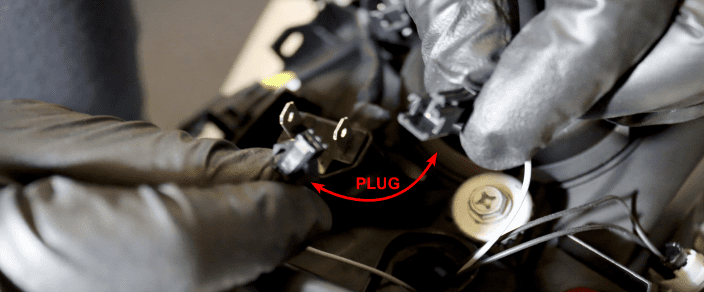

Directly connect the amber DRL plugs to each of the headlights.
DO NOT USE DIELECTRIC GREASE! Once completed, ensure to securely close the side marker socket back into the headlight
assembly.

COMPLETE SWITCHING INTO AMBER DRL & PARKING LIGHTS

After plugging in the connection, reinstall the headlights onto the vehicle. Congratulations! You have successfully switched to Amber (Yellow color) Daytime Running Lights (DRL) and Parking lights.

End of installation guide

If you have any questions about installation, please reach out to our technical support team for assistance.
