How to Switch to Amber Daytime Running Light (DRL) for AlphaRex 09-18 Ram Truck Headlights

Table of Contents

Disclaimer: This installation article is a tutorial guide. By reading this article, you agree it is for reference only and AlphaRex USA and its distributors make no guarantee on the finished results. Under no circumstances whatsoever shall AlphaRex USA nor its distributors be liable for any damage, misuse or personal injuries. If you do not fully understand the installation procedure, it is highly recommended that you seek help from professional mechanics to do the installation.

This instruction guide is applicable to the following ALPHAREX headlight products:
09-18 Ram Truck (MKII 5th Gen 2500 Style) LUXX-Series LED Projector Headlights (Alpha-Black) / SKU: 880560
09-18 Ram Truck (MKII 5th Gen 2500 Style) LUXX-Series LED Projector Headlights (Black) / SKU: 880558
09-18 Ram Truck (MKII 5th Gen 2500 Style) LUXX-Series LED Projector Headlights (Chrome) / SKU: 880559
09-18 Ram Truck (MKII 5th Gen 2500 Style) NOVA-Series LED Projector Headlights (Alpha-Black) / SKU: 880557
09-18 Ram Truck (MKII 5th Gen 2500 Style) NOVA-Series LED Projector Headlights (Black) / SKU: 880555
09-18 Ram Truck (MKII 5th Gen 2500 Style) NOVA-Series LED Projector Headlights (Chrome) / SKU: 880556

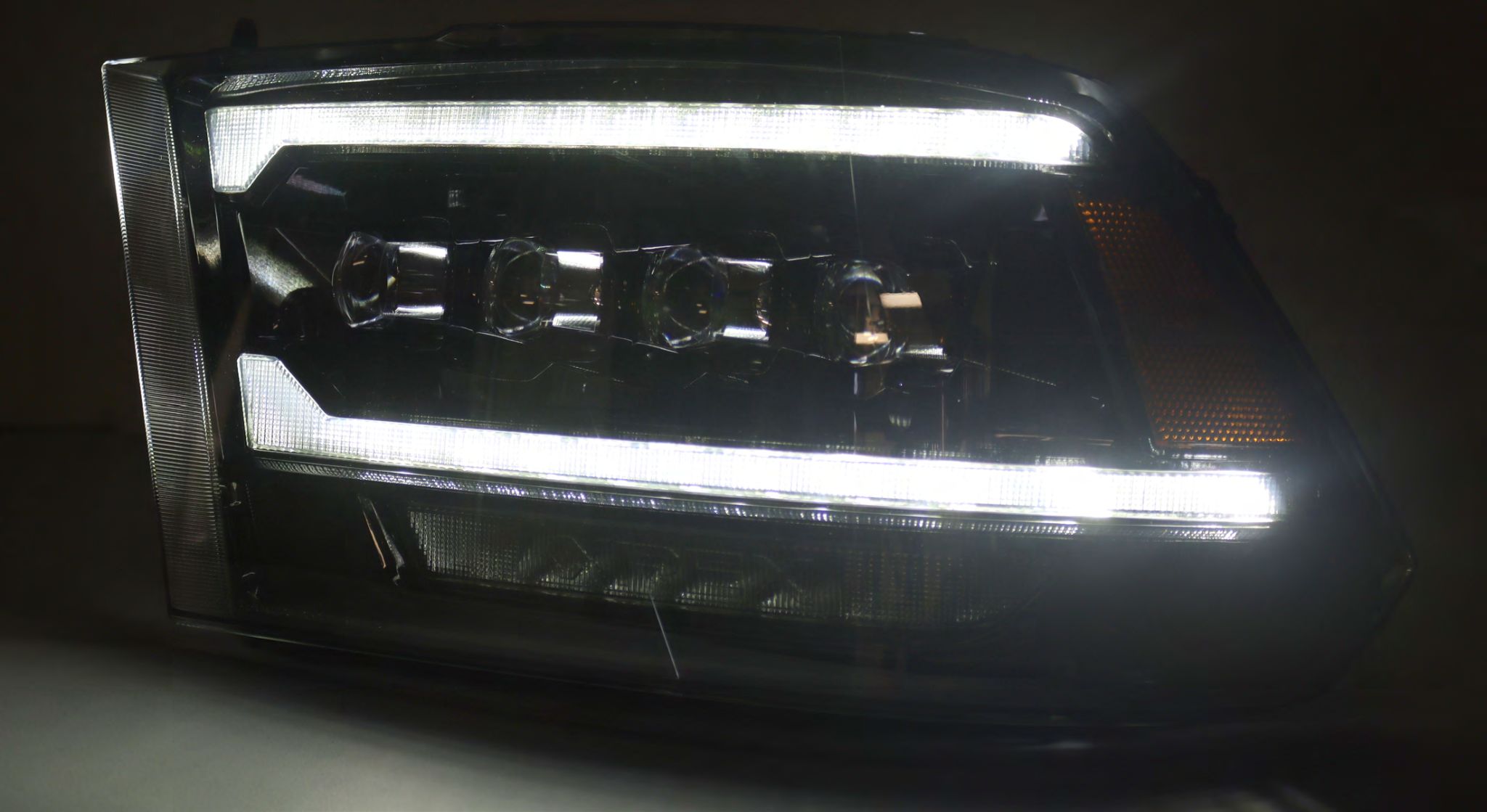

In the product list, the LUXX-Series and the NOVA-Series headlights designed for the 2009-18 Ram Truck offer an optional switch plug, allowing you to customize the color of the Daytime Running Lights (DRL) and Parking lights to Amber (Yellow). By default, these lights come in White from the factory

Customers have the flexibility to choose Amber (Yellow color) based on their preference. PLEASE NOTE: Once you have plugged in and switched to Amber, the color of the Daytime Running Lights (DRL) and Parking lights will remain in Amber (Yellow color).



AMBER SWITCH PLUGS LOCATION

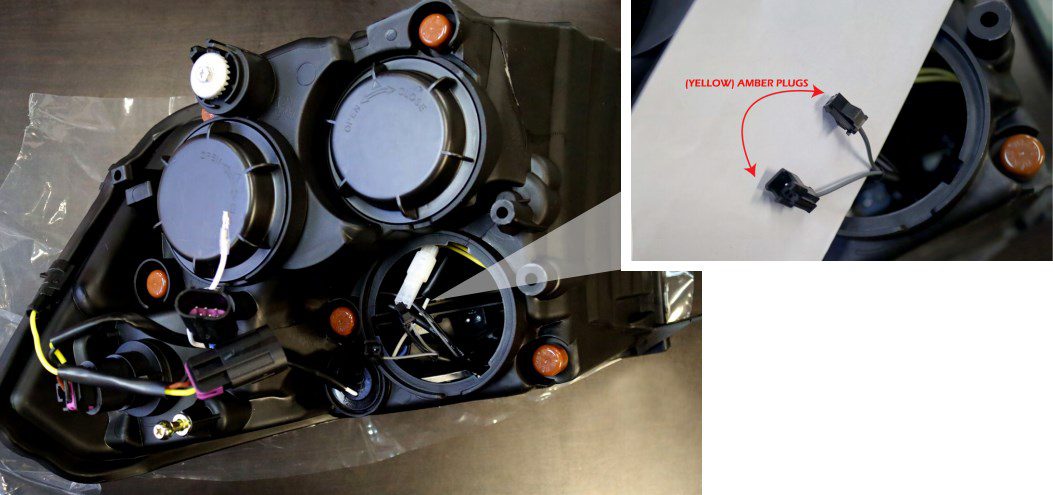

Open the dust cover at the back of each ALPHAREX headlight. Inside the headlight assembly, locate the plug connectors designed for switching to Amber (Yellow color) DRL & Parking lights.

CONNECT THE AMBER SWITCH PLUGS

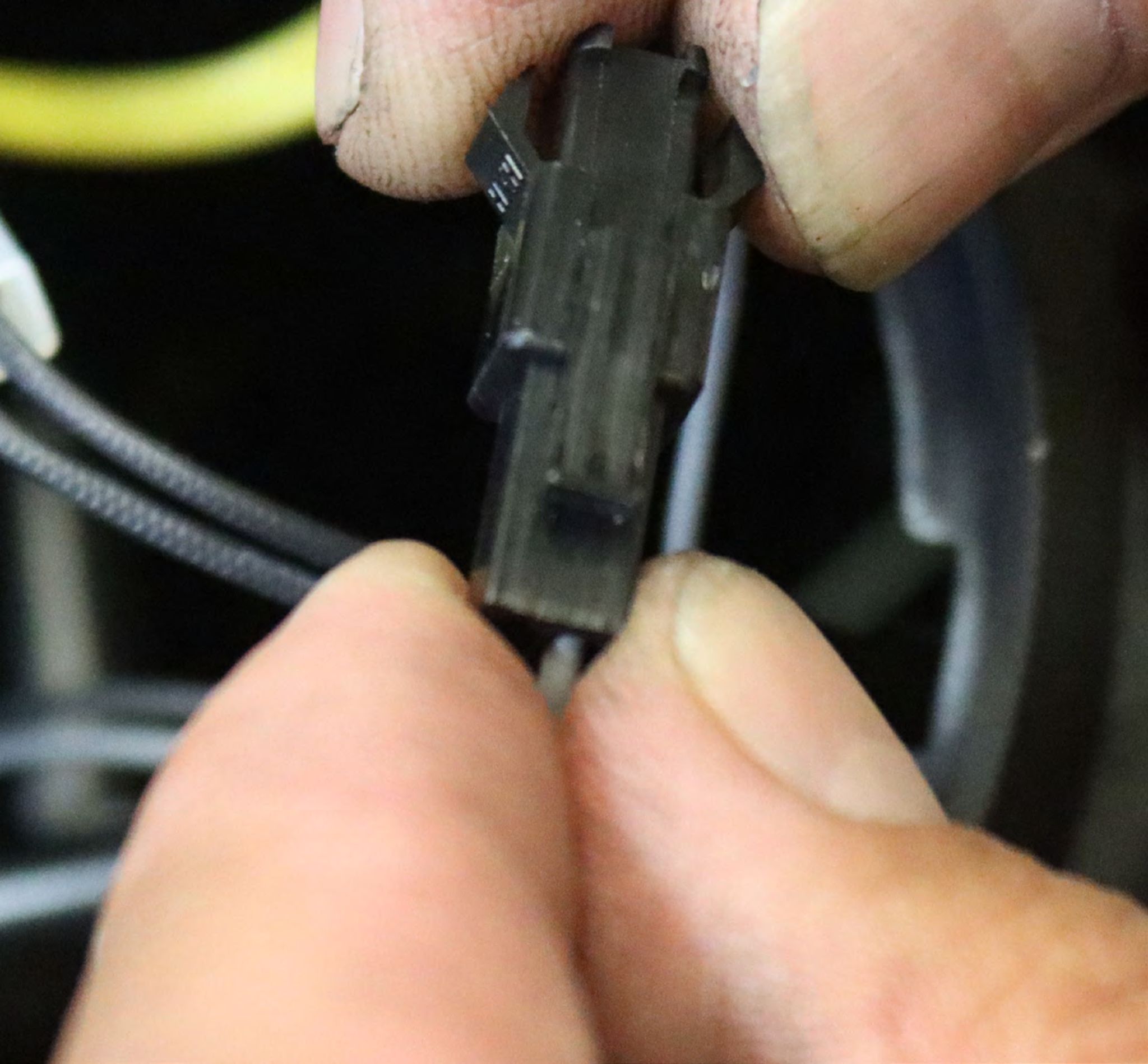

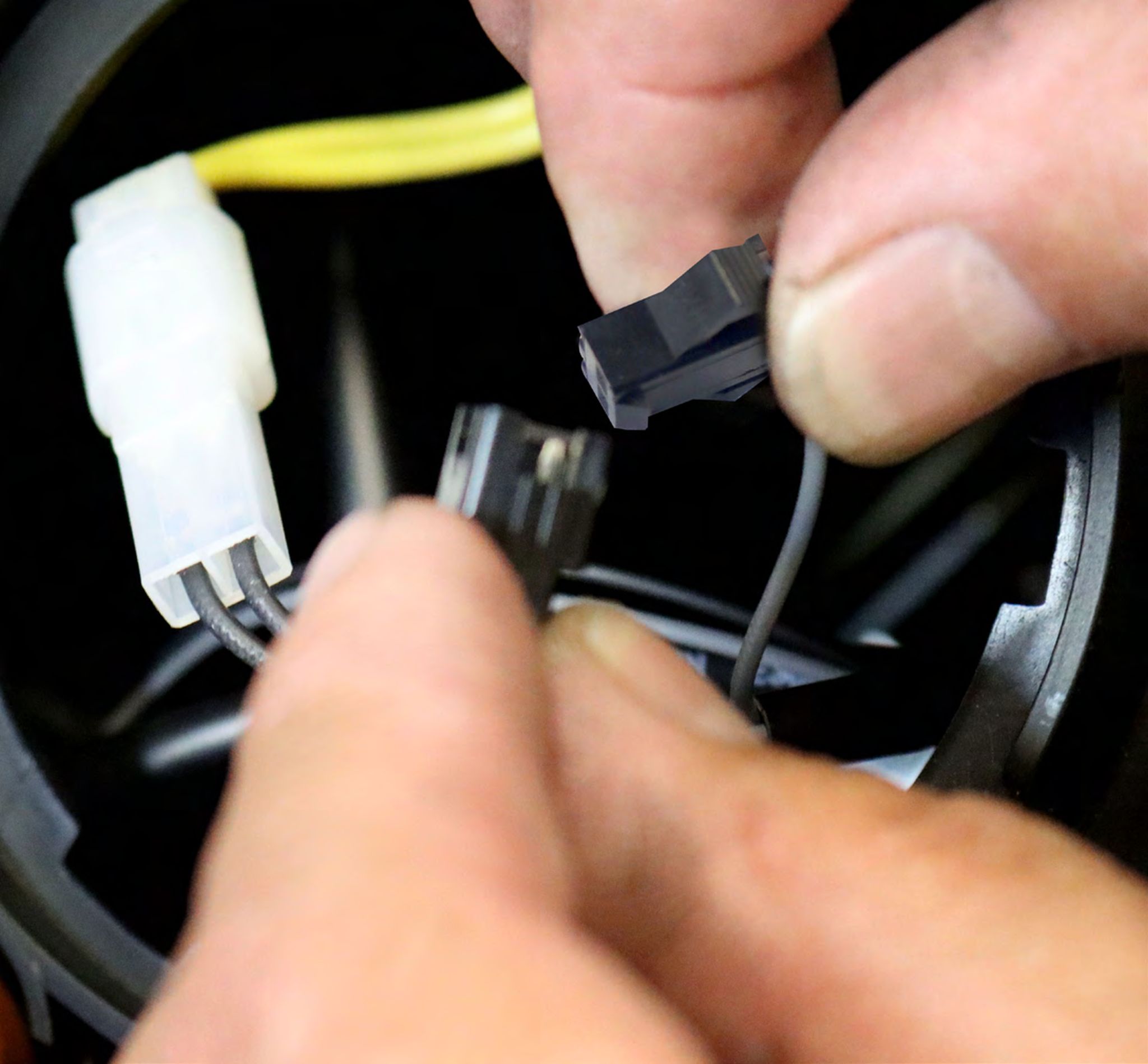

Connect the amber DRL plugs directly into each of the headlights.
DO NOT USE DIELECTRIC GREASE!

COMPLETE SWITCHING INTO AMBER DRL & PARKING LIGHTS

After plugging in the connection, reinstall the headlights onto the vehicle. Congratulations! You have successfully switched to Amber (Yellow color) Daytime Running Lights (DRL) and Parking lights.

End of installation guide

If you have any questions about installation, please reach out to our technical support team for assistance.
